With the rapid growth of the global electric vehicle (EV) market, electric vehicles are gaining increasing popularity among consumers not only as a green mode of transportation but also for their important roles in energy management, smart grids, and other sectors. To facilitate better interaction between the vehicle and the grid, the SECC (Smart Electric Car Charger) Vehicle Discharge Protocol Board has emerged as a key component enabling efficient interaction between electric vehicles, charging stations, and the smart grid.
1. Product Overview

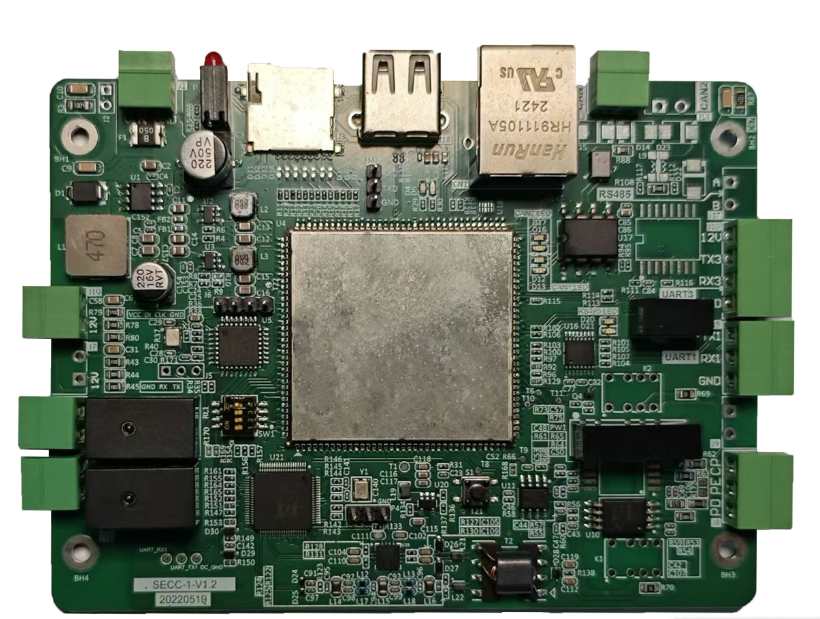

The European Standard SECC Vehicle Discharge Protocol Board is an intelligent protocol board designed by Yinan Technology specifically for electric vehicles. It supports the V2G (Vehicle-to-Grid) discharging function, enabling bidirectional energy flow between the electric vehicle and the smart grid through the SECC protocol. This protocol board can also be used to design outdoor power supply products.
2. Product Highlights
- Supports V2G functionality, enabling discharging from the vehicle to external devices.
- Over-voltage protection to ensure safety.
- Plug-and-play functionality for easy installation and use.
- SOC (State of Charge) low protection to prevent battery damage.
- Easy export of charging records for monitoring and data analysis.
- Supports ISO 15118 and DIN 70121 protocols for compatibility with international standards.
3. Technical Specifications
- Protocol Support: SECC protocol, V2G functionality, ISO 15118, and OCPP 2.0 standards.
- Battery Voltage Range: DC 200V – 500V (compatible with various vehicle models).
- Maximum Discharge Power: Up to 50 kW.
- Communication Interfaces: CAN Bus, Ethernet, PLC (Power Line Carrier Communication).
- Operating Temperature Range: -30°C to +85°C.
- Dimensions: Compact design, adaptable to different vehicle models.
- Certification Standards: Compliant with EU V2G standards, ISO 15118, and OCPP 2.0.
4. Application Scenarios
- Outdoor Electric Vehicle Chargers (serving as a replacement for portable charging stations).
- Home and Commercial Energy Storage Systems for energy management.
This product allows for seamless interaction between electric vehicles and the grid, providing a reliable solution for future smart grid and V2G applications.
