Product Features:
- Supports DIN70121 and ISO15118 communication protocols.
- External communication protocol hardware supports CAN2.0, RS232, Ethernet, and other communication interfaces.
- Supports conversion from EU standard DC pile protocol to national standard GBT27930, enabling domestic pile manufacturers to quickly develop EU standard DC pile products.
- Supports 10/100M Ethernet and 4G functionality, allowing for remote network-based upgrades and fault information export.

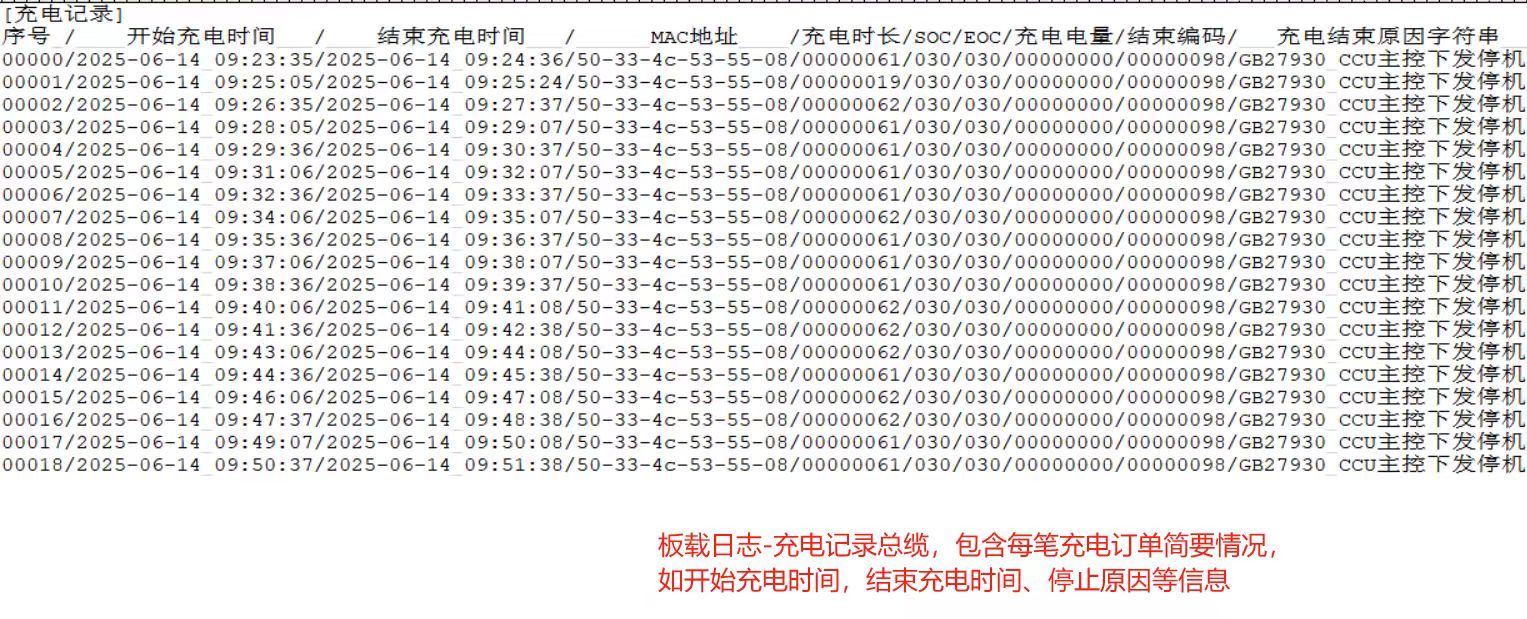

- Supports USB OTG functionality, allowing data records and fault information to be exported via USB flash drive.
- Logs can be uploaded in real-time to the charging pile CCU/MCU main control unit.

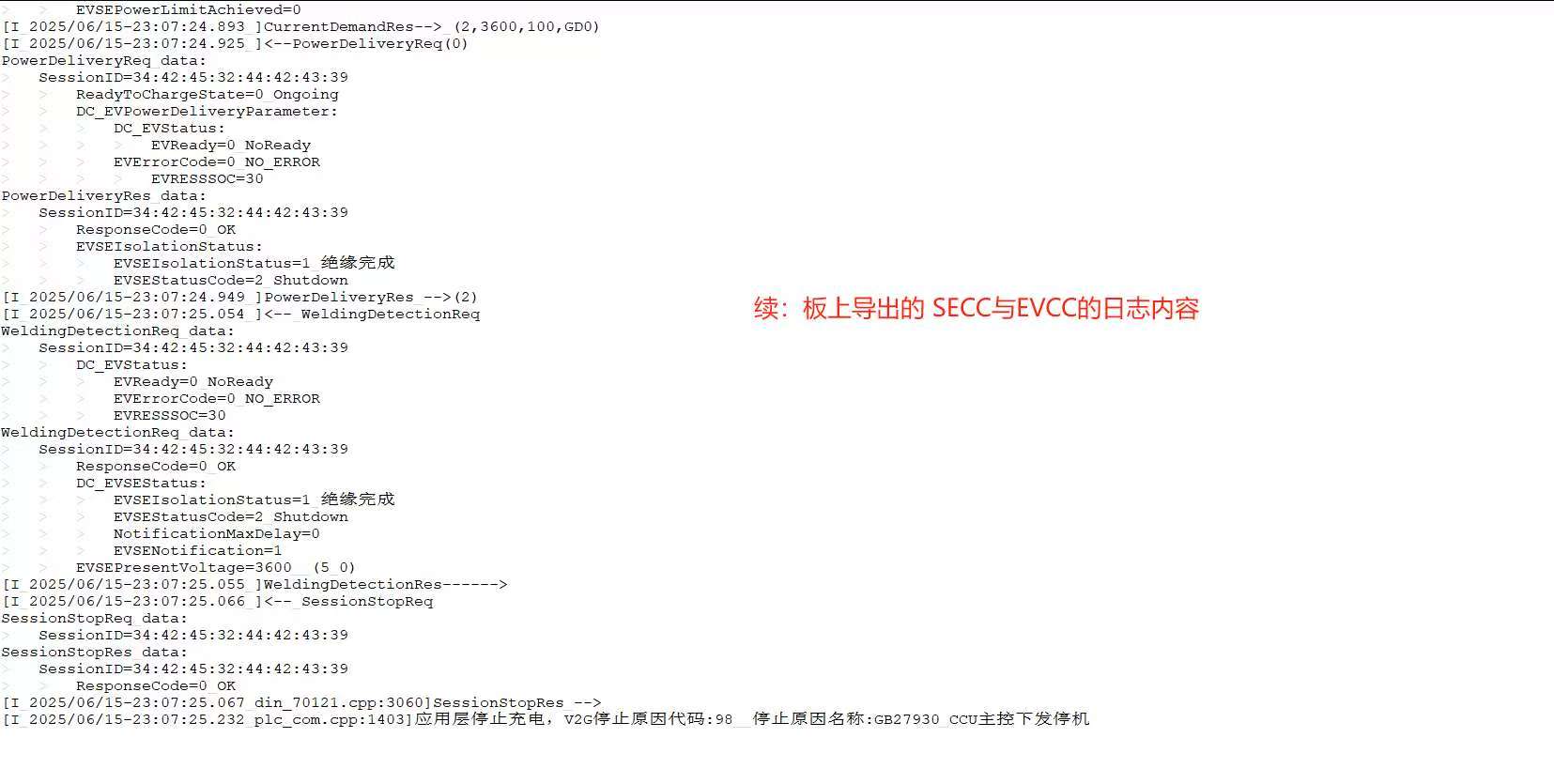

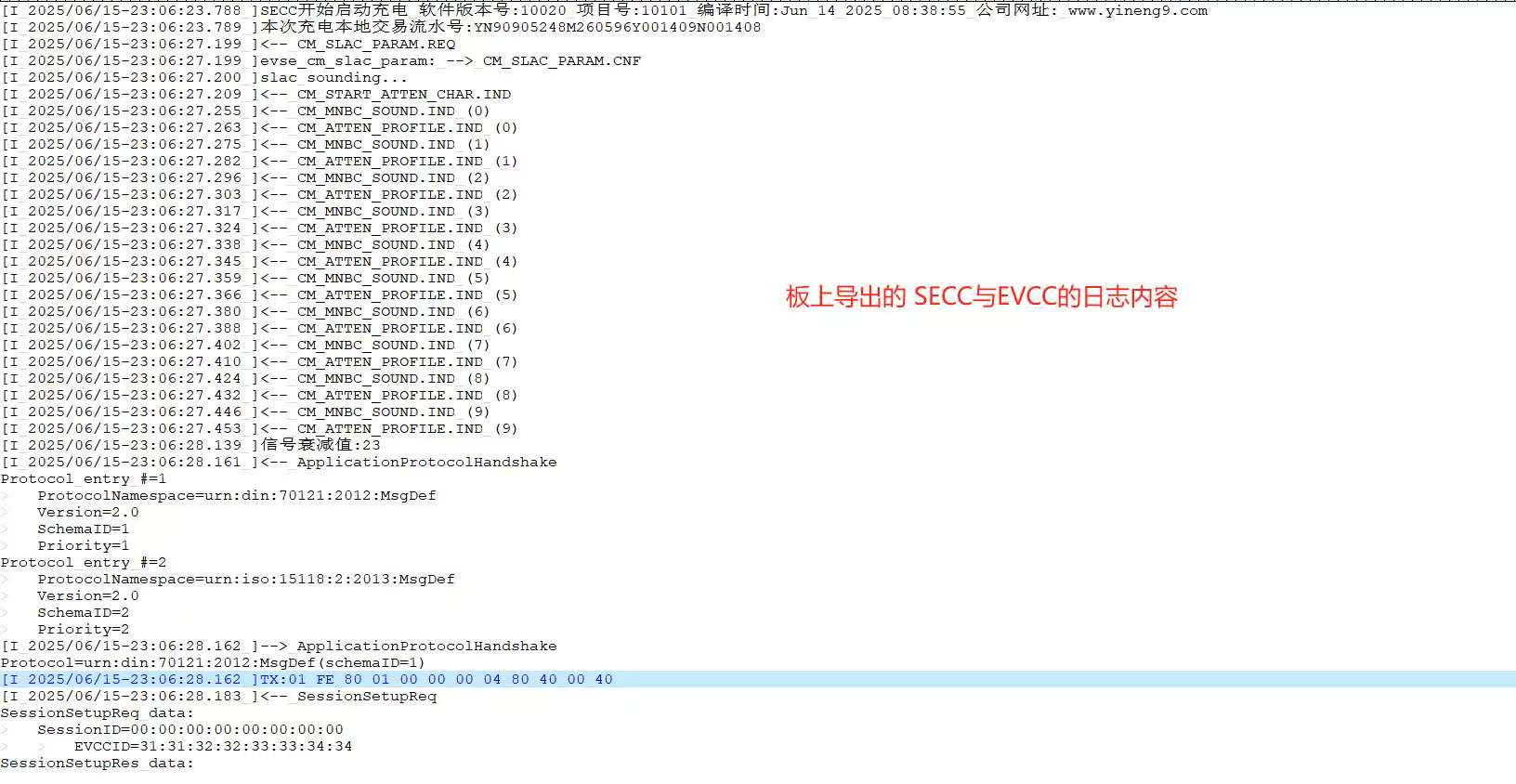

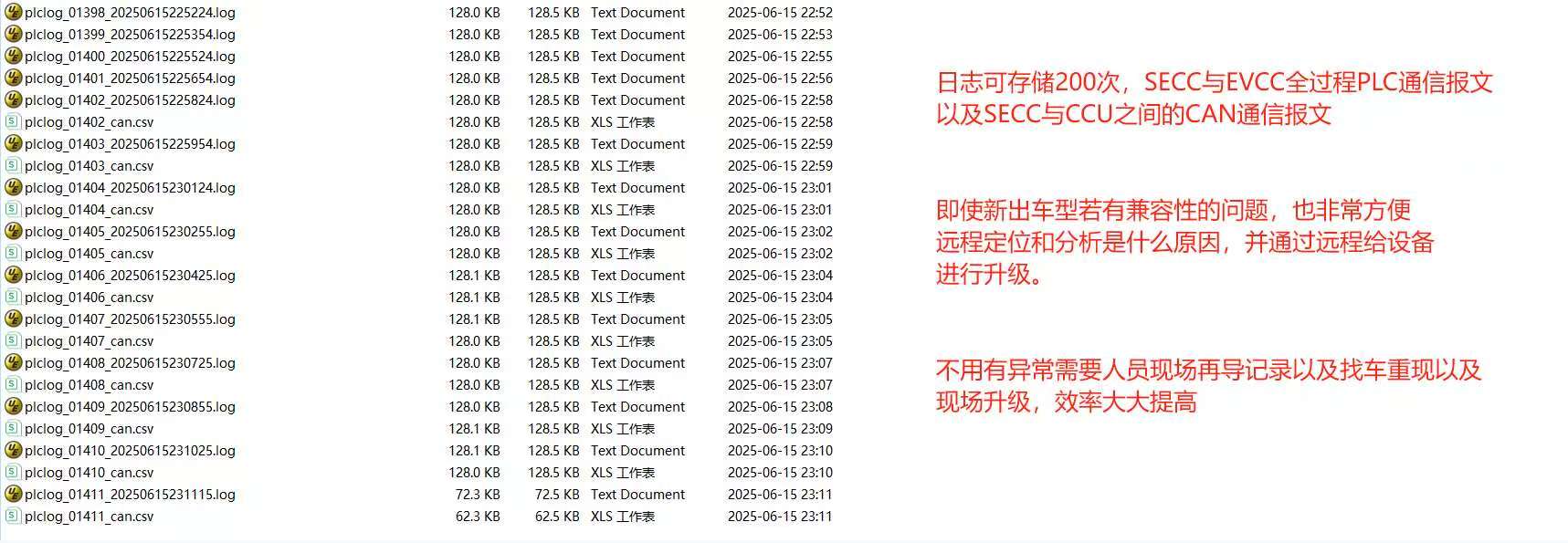

- Capable of real-time storage of PLC communication messages with EVCC and CAN messages with the charging pile main control. In case of compatibility issues with new vehicle models, logs can be quickly pulled for analysis and optimization without the need for the vehicle to be present.
- Supports remote tracking, remote upgrades, and remote logging of on-site data. Even if the device is overseas, equipment debugging can be performed quickly and conveniently.
This product can be easily installed and matched with national standard new energy vehicles, piles, and other charging and discharging products or devices, enabling quick entry into international markets such as Europe, the United States, and Southeast Asia.
